Getting started¶
YARF is a tool built upon Robot Framework that allows developers to build complex visual test scenarios and bootstrap them locally, and then work towards automated runs in continuous integration (CI) and use of platforms/fixtures with minimal effort. In YARF, we support the Mir as one of our default platform.
Mir is a display server that is suitable for local development and continuous integration. In this tutorial, we will use Mir to display an application called simple-counter and then use YARF to perform actions and run tests on it. For details please visit here.
In this tutorial, we will go through the process of setting up YARF and a Mir server, then we will start a calculator app inside the Mir server and use YARF to do some simple calculations.
This tutorial is divided into the following sections:
Setup
Exploring YARF
Setup¶
Installing YARF and dependencies¶
First of all, we will install YARF, we can simply run:
sudo snap install yarf
Optionally connect the following snap interface to allow our optical character recognition (OCR) algorithm to speed up the process:
snap connect yarf:process-control
Next, we need to install mir-test-tools, a snap that provides an HID enabled demo Mir server - In this server, we can control the mouse and keyboard.
sudo snap install mir-test-tools
After that, we will install some dependencies that the simple-counter required:
sudo apt update
sudo apt install \
python3-gi \
gir1.2-gtk-4.0 \
libadwaita-1-dev \
gir1.2-adw-1
Starting the Mir server¶
Now, let’s start the Mir server:
export WAYLAND_DISPLAY=wayland-0
mir-test-tools.demo-server \
--add-wayland-extensions zwlr_screencopy_manager_v1:zwlr_virtual_pointer_manager_v1 &
Note
WAYLAND_DISPLAY is a variable that is only used inside the Mir virtual server, not the running desktop.
We should see some output like:
$ mir-test-tools.demo-server \
--add-wayland-extensions zwlr_screencopy_manager_v1:zwlr_virtual_pointer_manager_v1 &
[1] 4160206
[2025-07-30 15:51:06.763863] <information> mirserver: Starting
...
[2025-07-30 15:51:08.360008] <information> mirserver: Initial display configuration:
[2025-07-30 15:51:08.360031] <information> mirserver: * Output 1: unknown connected, used
[2025-07-30 15:51:08.360039] <information> mirserver: . |_ Physical size 9.7" 193x155mm
[2025-07-30 15:51:08.360042] <information> mirserver: . |_ Power is on
[2025-07-30 15:51:08.360047] <information> mirserver: . |_ Current mode 1280x1024 120.00Hz
[2025-07-30 15:51:08.360050] <information> mirserver: . |_ Preferred mode 1280x1024 120.00Hz
[2025-07-30 15:51:08.360054] <information> mirserver: . |_ Orientation normal
[2025-07-30 15:51:08.360059] <information> mirserver: . |_ Logical size 1280x1024
[2025-07-30 15:51:08.360062] <information> mirserver: . |_ Logical position +0+0
[2025-07-30 15:51:08.360065] <information> mirserver: . |_ Scaling factor: 1.00

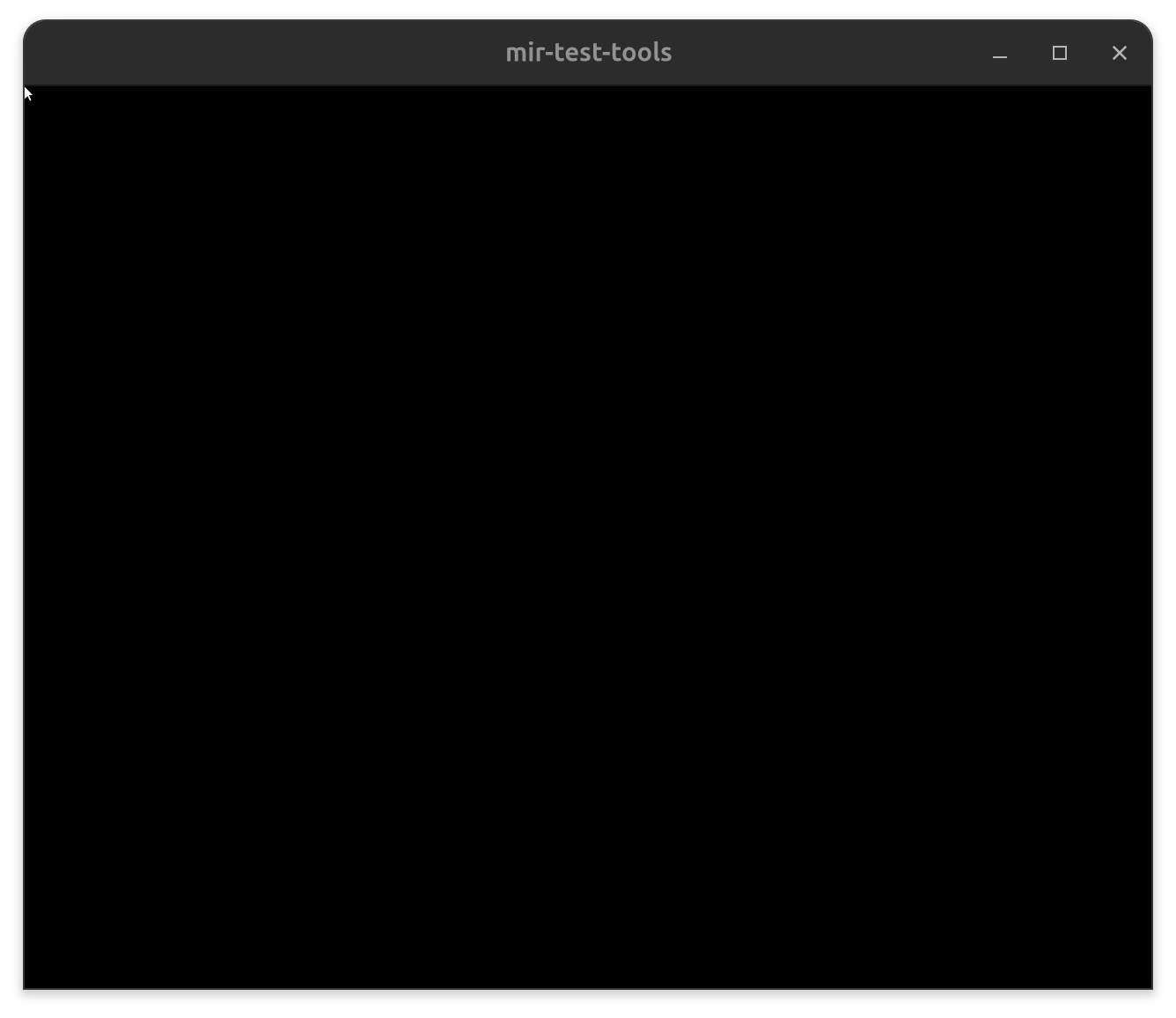

And a black window with a pointer should pop up:
The mir test tools window¶
Starting the calculator app¶
Now, we can start our simple-counter by running under the same terminal:
gnome-calculator &

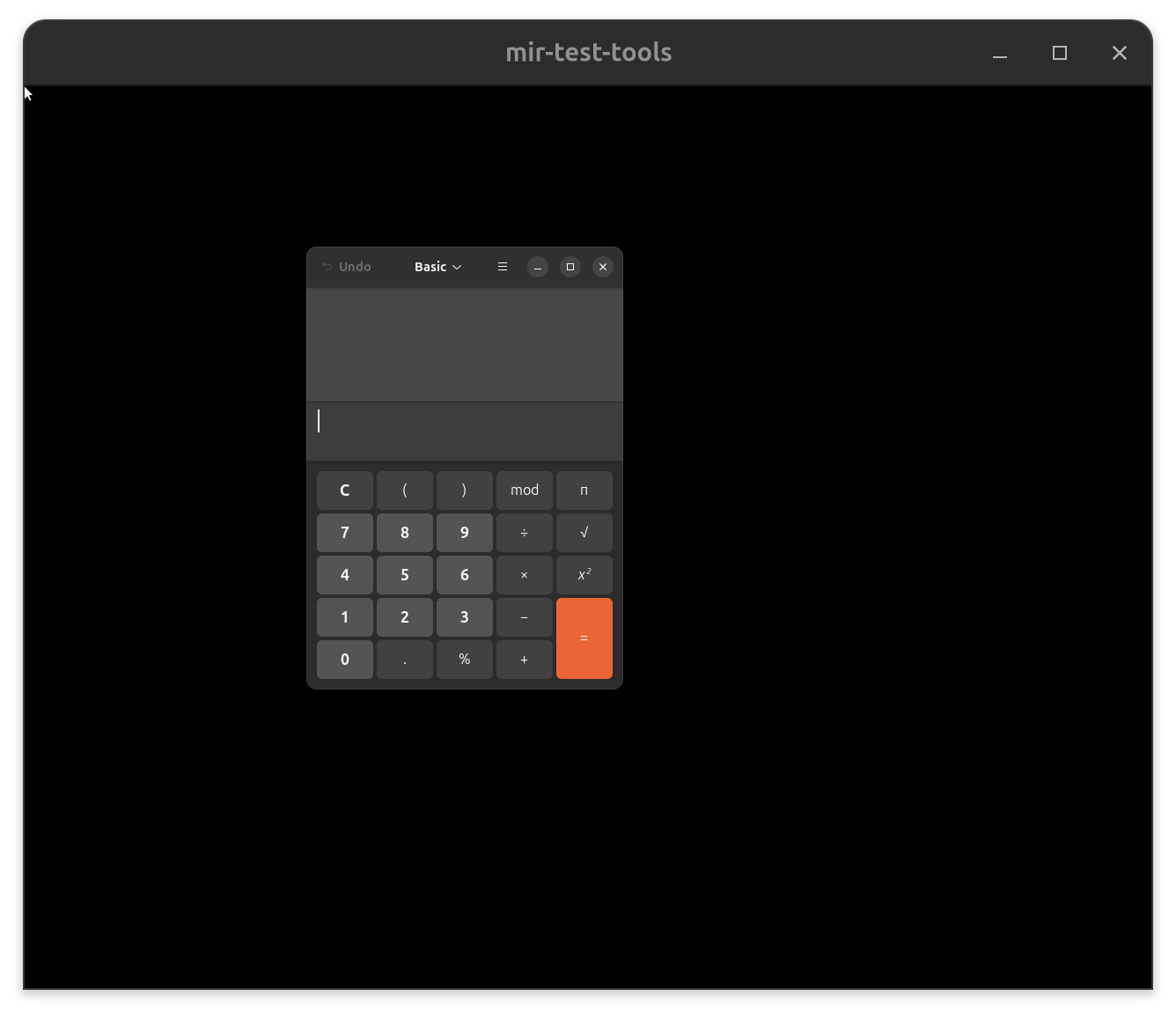

Then we should see our simple counter popped up in the mir server:
The mir-test-tools window with the calculator running.¶
Exploring YARF¶
After setup, we can start exploring YARF. In YARF we can control the pointer and keyboard using different functions called keywords, and we provided an interactive mode for users to test out different commands.
Entering the interactive mode¶
To get into interactive mode, we can run:
$ yarf --platform Mir
INFO:RPA.core.certificates:Truststore not in use, HTTPS traffic validated against `certifi` package. (requires Python 3.10.12 and 'pip' 23.2.1 at minimum)
2025-07-30 17:28:11,998 - RPA.core.certificates - INFO - Truststore not in use, HTTPS traffic validated against `certifi` package. (requires Python 3.10.12 and 'pip' 23.2.1 at minimum)
INFO: *** Welcome to the YARF interactive console. ***
INFO: You can use this console to execute Robot Framework keywords interactively.
INFO: The value of ${CURDIR} is CWD, you can change it using the `Set Variable` keyword.
INFO: You can press RIGHT_ARROW to auto-complete the keyword.
INFO: You can press CRTL + SPACE to view supported keywords on a prefix.
>>>>> Enter interactive shell
iRobot can interpret single or multiple keyword calls,
as well as FOR, IF, WHILE, TRY
and resource file syntax like *** Keywords*** or *** Variables ***.
Type "help" for more information.
>
Here, we can run keywords to see a list of commands that we can use:
...
>>>>> Enter interactive shell
iRobot can interpret single or multiple keyword calls,
as well as FOR, IF, WHILE, TRY
and resource file syntax like *** Keywords*** or *** Variables ***.
Type "help" for more information.
> keywords
...
< Keywords of library kvm
Click ${button} Button Click a button on the virtual pointer.
Click ${button} Button On ${destination} Move the virtual pointer to the destination and click the button.
Displace ${point} By (${x}, ${y}) Shift a point by the specified displacements along the x and y axes.
Get Center Of ${region} Get the center point of a region.
Move Pointer To ${destination} Move the pointer to an absolute position or image template.
Move Pointer To ${destination} In ${domain} Move the pointer to an absolute position or image template.
Move Pointer To (${x}, ${y}) Move the pointer to an absolute position.
Move Pointer To Proportional (${x}, ${y}) Move the pointer to a destination position given as proportions to the size of the display output.
Press ${button} Button Press a button on the virtual pointer.
Press And Wait For Match
Press Combo And Match If the provided template is not already matching, press a key combination until it does.
Press Key And Match If the provided template is not already matching, press a key until it does.
Release ${button} Button Release a button on the virtual pointer.
Release Buttons Release all buttons on the virtual pointer.
Walk Pointer To ${destination} Moves the pointer in incremental steps from the current pointer position to an absolute position or image template.
Walk Pointer To (${x}, ${y}) Move the pointer in incremental steps from the current pointer position to an absolute position.
Walk Pointer To Proportional (${x}, ${y}) Move the pointer in incremental steps from the current pointer position to a destination position given as proportions to the size of the display output.
In YARF, we supports the Robot Framework built-in keywords and we also developed a list of keywords for more convenient use cases. For a more detailed list of keywords developed under YARF, please visit the reference page.
Start using keywords¶
Now let’s use the YARF interactive mode to do some simple maths. With the cursor blinking in the calculator. Use the following command in the interactive console:
PlatformHid.Type String.¶> PlatformHid.Type String 7*6=
>
This command will type 7*6= in the calculator and should give a result equals to 42.
The calculator calculating a simple formula.¶
Alternatively, instead of simulating keyboard input, we can also instruct YARF to simulate mouse clicks on the graphic interface using the Click ${button} Button On ${destination} keyword. To do this, we need to tell the keyword which UI element to target by providing a template.
In the interactive mode, we provided a Grab Templates keyword that opens an ROI (Region of Interest) selector to allow our users to select templates.
>>>>> Enter interactive shell
...
Interactive.Grab Templates 7 * 6 = # ΔT: 7.686s
Click and drag to select and save an ROI, press Esc to exit the ROI selector.
ROI saved as /path/to/7.png
ROI saved as /path/to/*.png
ROI saved as /path/to/6.png
ROI saved as /path/to/=.png
>

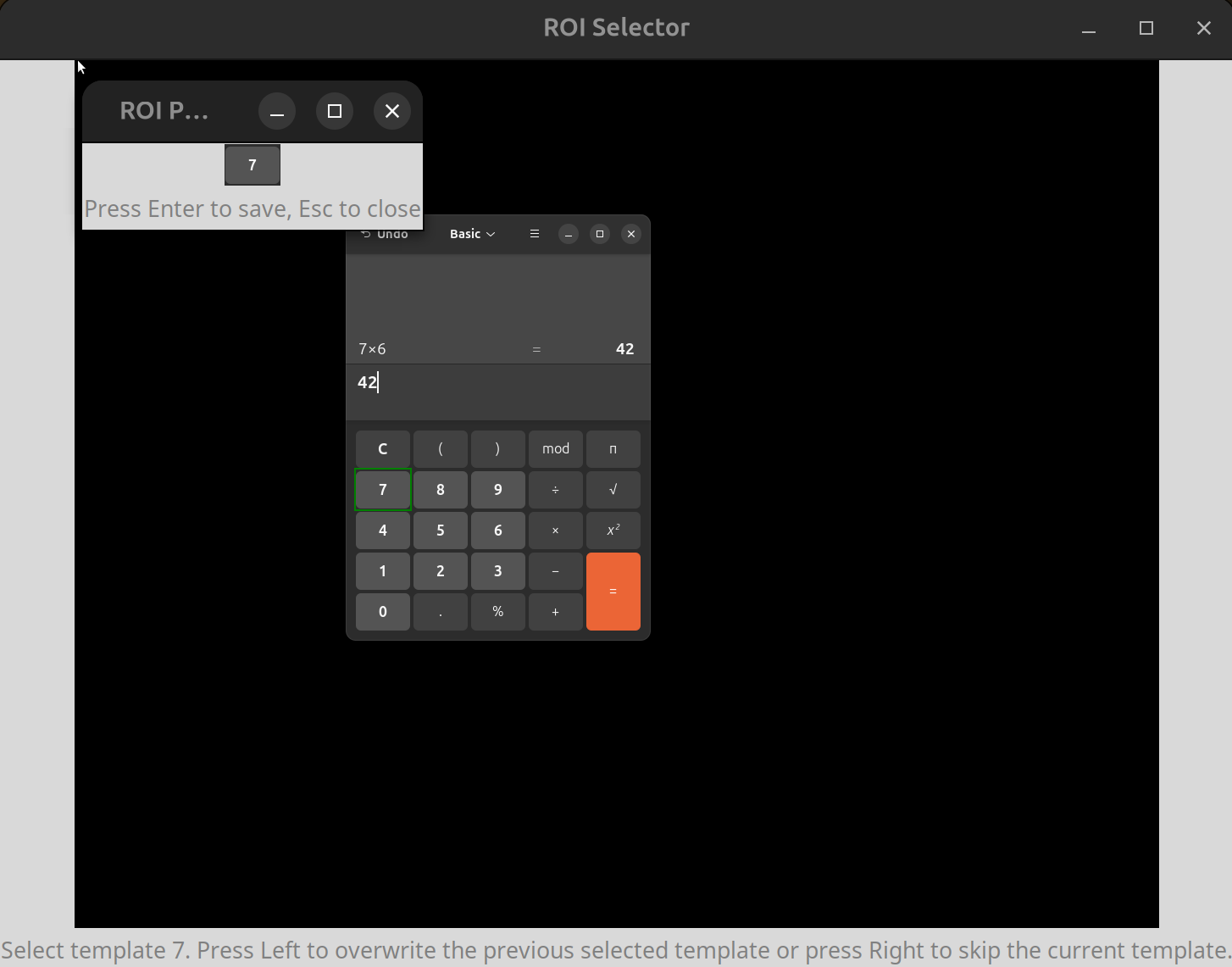

The ROI selector selecting the 7 button in the calculator.¶

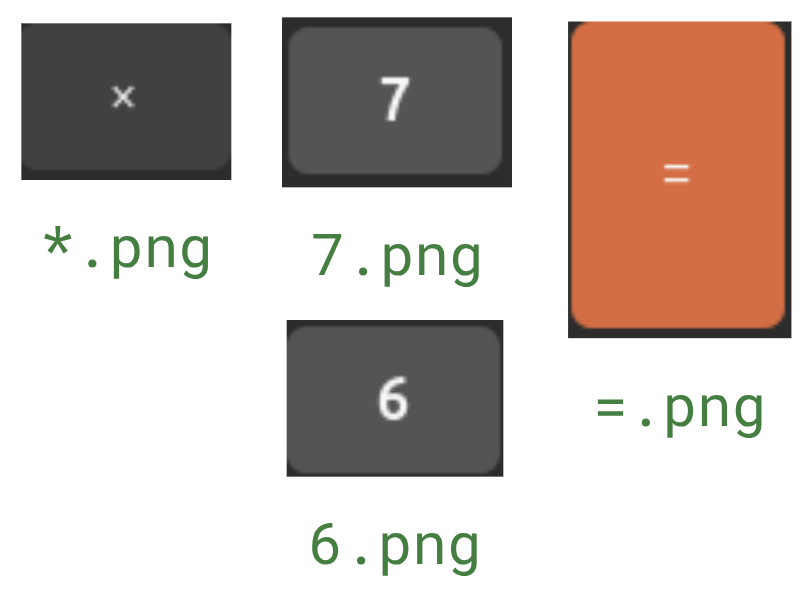

Just follow the instructions in the ROI selector to capture the following templates:
The templates required for calculating 7*6=42.¶
Now with the templates in place we can use the function Click ${button} Button On ${destination} to click the buttons:
>>>>> Enter interactive shell
...
> Click LEFT Button On /path/to/7.png # ΔT: 0.114s
INFO:root:Scanned image in 0.12 seconds
> Click LEFT Button On *.png # ΔT: 0.138s
INFO:root:Scanned image in 0.09 seconds
> Click LEFT Button On 6.png # ΔT: 0.107s
INFO:root:Scanned image in 0.09 seconds
> Click LEFT Button On =.png # ΔT: 0.105s
INFO:root:Scanned image in 0.11 seconds
>
Then we should see the pointer inside the mir server moving across the buttons on the calculator and give the answer 42 as the same before.
In this tutorial, we have successfully setup the mir server and use YARF to control the keyboard and pointer to do simple calculations on the calculator app. Feel free to try out other keywords!
